    On Site Industrial Oxygen Generation System

    Custom-Built PSA Oxygen Generator (for Plateau)

    The plateau oxygen generation system is based on advanced pressure swing adsorption (PSA) technology and is designed for hypoxic, high-altitude complex environments and complex operating conditions. Ambient air at high altitude is used as the feed gas. After pretreatment to remove impurities and moisture, the air is treated to produce clean compressed air and introduced into an adsorption section packed with high-quality zeolite molecular sieve (ZMS). Under plateau adsorption kinetics, nitrogen diffuses through the molecular sieve pores at a much faster rate than oxygen and is preferentially adsorbed, while oxygen is enriched in the gas phase to form product gas.

    Oxygen purity delivers a consistent purity of 93%±2% and reaches up to 99.5% through upgraded purification processes, meeting the requirements of plateau medical, residential, and other application scenarios. Two adsorption towers operate alternately under PLC-controlled valve switching. One tower performs adsorption and oxygen production, while the other is regenerated through depressurization and desorption, ensuring continuous oxygen supply. Reinforced protective design addresses plateau dust, large temperature variations, and harsh conditions. Optimized adsorbent regeneration efficiency and operating stability support reliable performance at high altitudes. Indoor spaces such as hotels, dormitories, and offices are supplied with oxygen-enriched air simulating low-altitude environments below 2400m, effectively alleviating altitude sickness.

    Technical Specifications
    • Oxygen capacity: 1-200Nm³/h (standard conditions)
    • Oxygen purity: 93%±2% (per Chinese National Standard)
    • Outlet pressure: 0.1-0.55MPa (gauge, stable and adjustable)
    • Oxygen dew point: ≤-40°C (at atmospheric pressure)
    • Applicable altitude range: 1800-5500m
    Technical Parameters
    Model Flow rate (Nm³/h) Feed air (Nm³/h) Power (W) Dimensions (L×W, mm)
    LMO-5 5 60 800 1600×1200
    LMO-10 10 120 800 1800×1500
    LMO-20 20 240 800 2000×1600
    LMO-30 30 360 800 2200×1800
    LMO-40 40 480 800 2400×1800
    LMO-50 50 600 800 2600×1800
    LMO-60 60 720 800 2600×1800
    LMO-80 80 960 800 2800×1800
    LMO-100 100 1,200 800 3500×2200
    LMO-120 120 1,440 800 3600×2200
    LMO-150 150 1,800 800 3800×2300
    LMO-180 180 2,160 800 4000×2300
    LMO-200 200 2,400 800 5200×2300

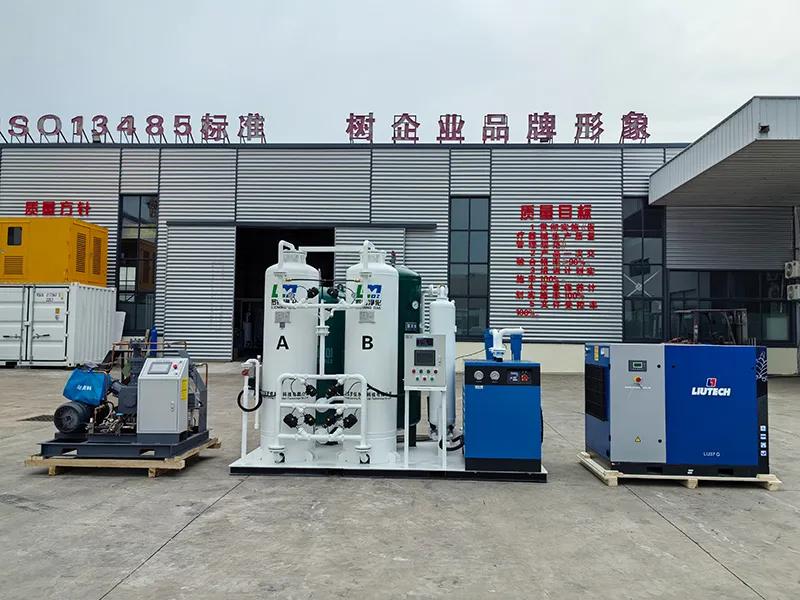

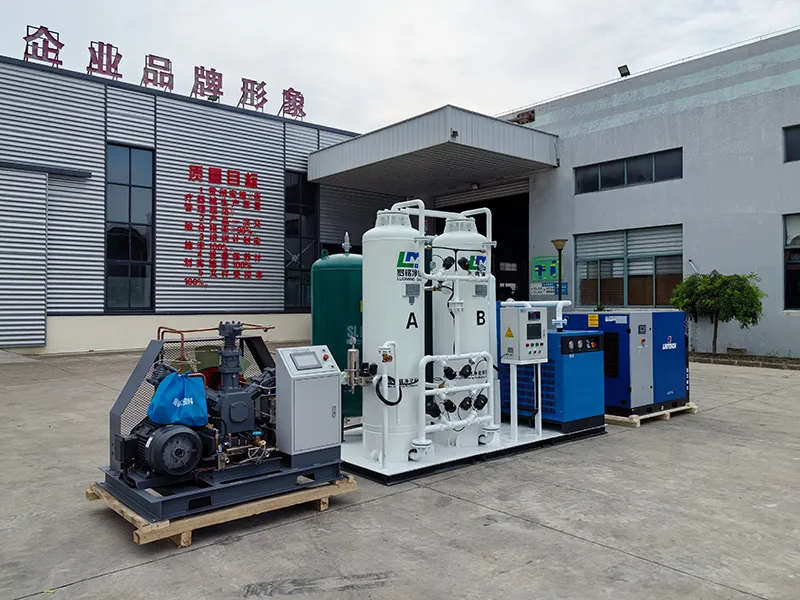

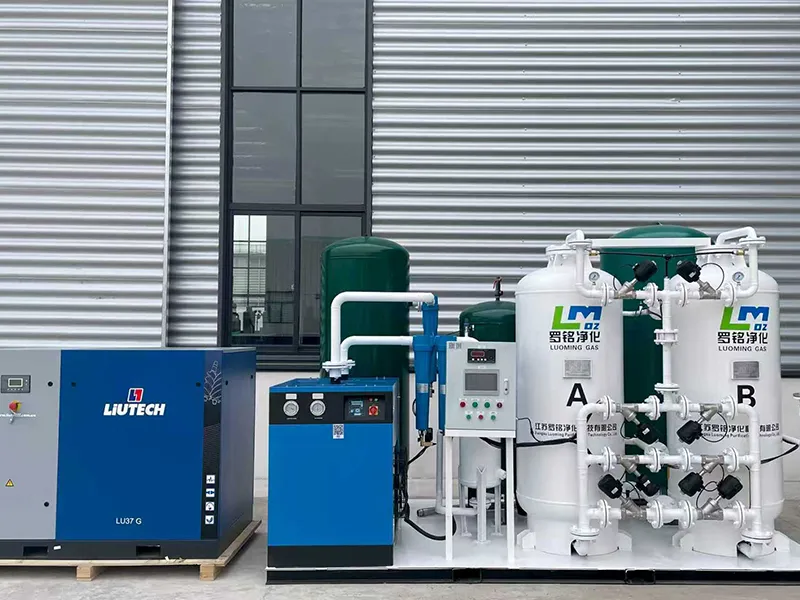

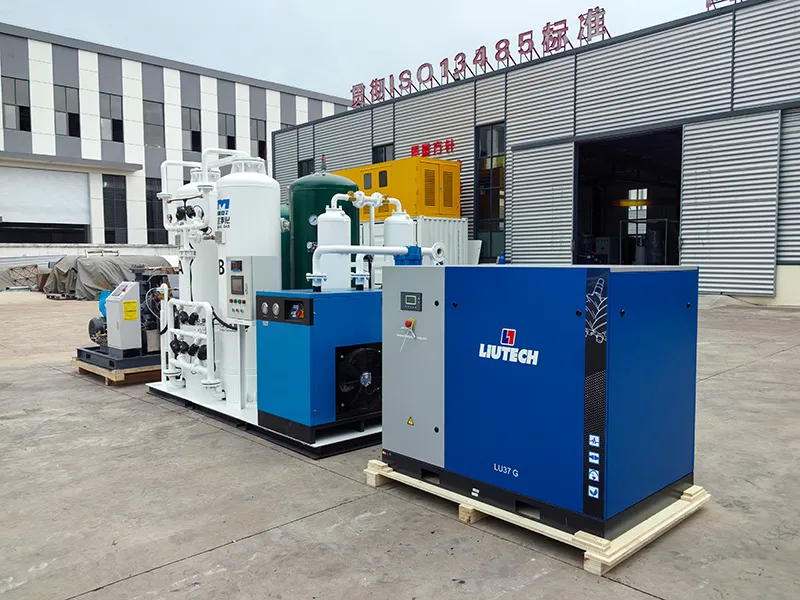

    Equipment Configuration

    Customize your system configuration based on your specific application, industry, and oxygen requirements.

      1. Air Compressor
      2. Air Compressor
      1. Compressed Air Dryer
      2. Compressed Air Dryer
      1. Inline Compressed Air Filter
      2. Inline Compressed Air Filter
      1. Oxygen Booster
      2. Oxygen Booster
      1. Gas Filling System
      2. Gas Filling System
