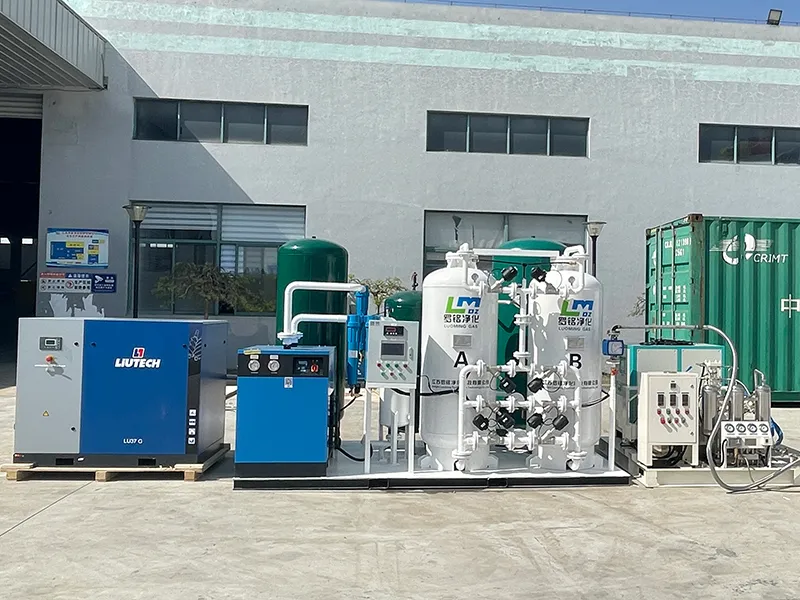

    Custom-Built PSA Oxygen Generator with Oxygen Filling Station

    For regions or countries where local oxygen cylinder supply is inaccessible and transportation costs are high, LuoMing provides an on-site oxygen cylinder filling station with strong adaptability. Paired with oxygen generators, this oxygen filling station satisfies on-site industrial, medical, or residential oxygen demand while enabling excess capacity to be filled into cylinders for storage and external retail distribution. This approach reduces dependence on traditional oxygen supply logistics and improves resource utilization efficiency, delivering an economical and sustainable on-site oxygen supply and revenue generating solution.

    Leave a Message
    Key Features
    • High-purity oxygen suitable for cylinder filling
      Standard filling purity reaches 93%±2% in compliance with national standards. Upgraded configurations achieve 99.5% high-purity oxygen. Secondary PSA purification combined with medical-grade filtration ensures oxygen free of contaminants. Oxygen dew point at ≤-40°C, reducing moisture-related internal corrosion.
    • Efficient and intelligent bottling
      PLC-based control enables one-touch operation and unattended operation. Filling purity, pressure, and flow rate are monitored in real time. Qualified oxygen output is available within 30 minutes. Filling pressure ranges from 15-20MPa and supports customized pressure settings to match different cylinder specifications.
    • Wide application coverage refilling
      Skid-mounted design occupies limited space and suits indoor, outdoor, and plateau filling sites. Selected models support mobility for temporary filling and emergency response. Inlet and outlet nominal diameters from DN15 to DN100 ensure compatibility with oxygen generators of various capacities and batch cylinder filling operations.
    • Safe and reliable charging
      Integrated audible and visual alarms combined with automatic overpressure relief mitigate filling risks. Core components feature temperature and corrosion resistance, supporting stable operation and reduced energy consumption compared with conventional filling equipment. CE and ISO compliance supports long-term operational safety.

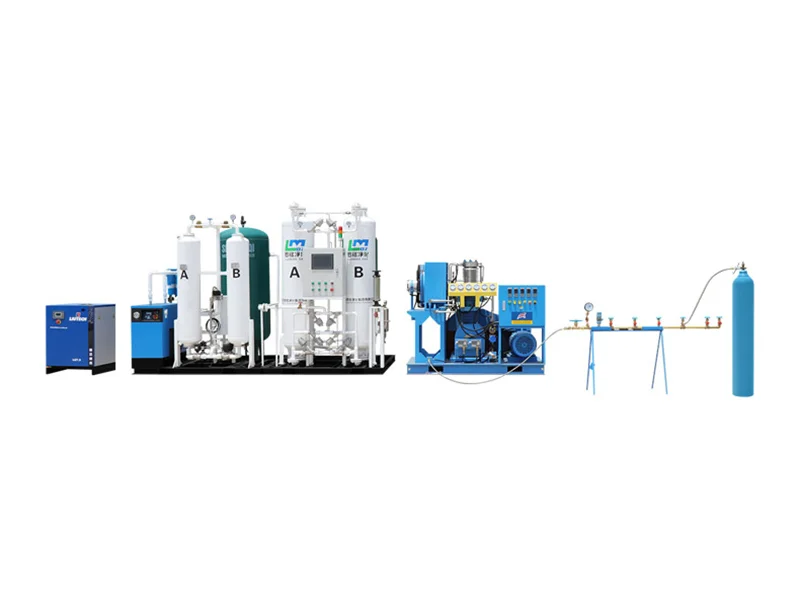

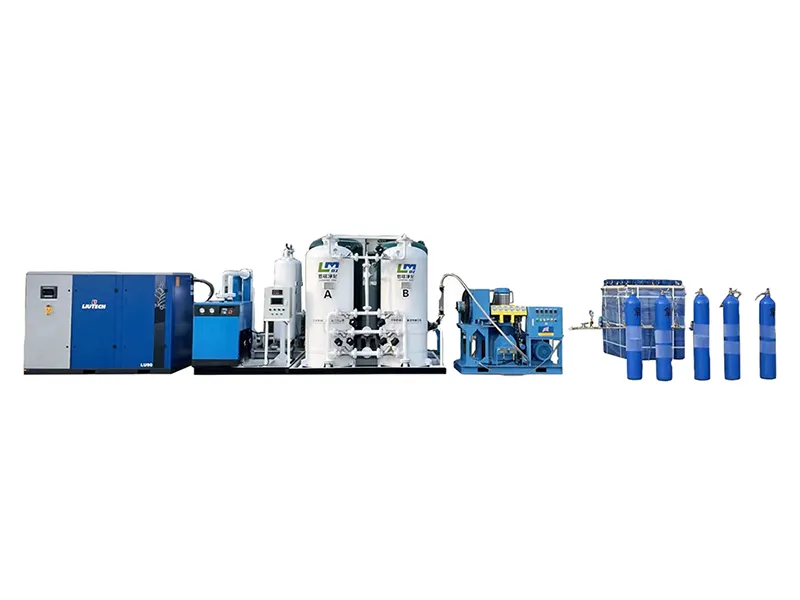

    Standard Configuration (Main Components)

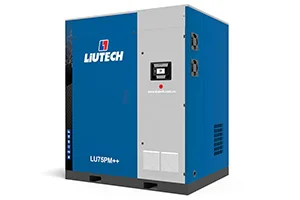

    • Air Compressor Air Compressor

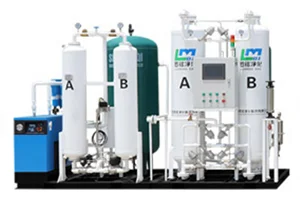

    • Oxygen GeneratorOxygen Generator

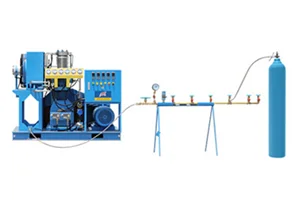

    • Oxygen Filling Station Oxygen Filling Station

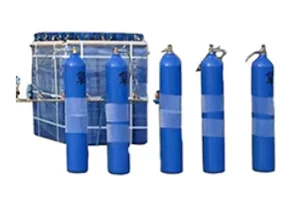

    • Oxygen Cylinders Oxygen Cylinders
    Process Flow
    On Site Industrial Oxygen Generation System
    Technical Parameters
    Model Oxygen purity Flow rate (Nm³/h, standard conditions) Inlet nominal diameter Outlet nominal diameter Filling pressure (MPa)
    LMO-3 93%±2% 3 DN15 DN15 15-20
    LMO-5 93%±2% 5 DN15 DN15 15-20
    LMO-10 93%±2% 10 DN25 DN25 15-20
    LMO-15 93%±2% 15 DN40 DN25 15-20
    LMO-20 93%±2% 20 DN40 DN25 15-20
    LMO-25 93%±2% 25 DN40 DN25 15-20
    LMO-30 93%±2% 30 DN40 DN25 15-20
    LMO-40 93%±2% 40 DN50 DN40 15-20
    LMO-50 93%±2% 50 DN50 DN40 15-20
    LMO-60 93%±2% 60 DN50 DN40 15-20
    LMO-70 93%±2% 70 DN65 DN40 15-20
    LMO-80 93%±2% 80 DN65 DN40 15-20
    LMO-90 93%±2% 90 DN65 DN40 15-20
    LMO-100 93%±2% 100 DN65 DN50 15-20
    LMO-110 93%±2% 110 DN65 DN50 15-20
    LMO-120 93%±2% 120 DN80 DN50 15-20
    LMO-130 93%±2% 130 DN80 DN50 15-20
    LMO-140 93%±2% 140 DN80 DN50 15-20
    LMO-150 93%±2% 150 DN100 DN50 15-20
    LMO-160 93%±2% 160 DN100 DN50 15-20
    LMO-170 93%±2% 170 DN100 DN50 15-20
    LMO-180 93%±2% 180 DN100 DN65 15-20
    LMO-190 93%±2% 190 DN100 DN65 15-20
    LMO-200 93%±2% 200 DN100 DN65 15-20
    Customization

    Customers may select standard containers or customized container dimensions. The container functions as a mobile gas generation workshop. Luoming provides the following upgrade options based on project requirements.

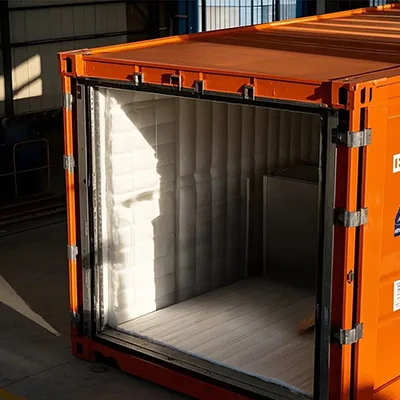

    • Thermal Foam Thermal Foam
      High-performance thermal insulation ensures reliable operation in extreme cold or sub-zero regions.

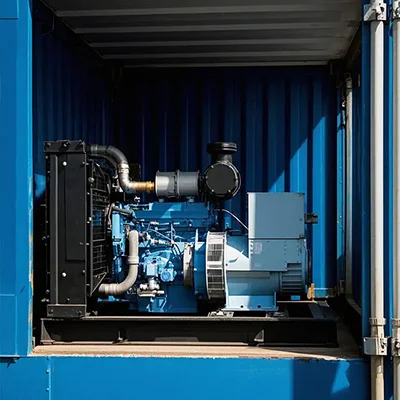

    • Integrated Alternator Integrated Alternator
      Integrated generator installation supports independent power supply.

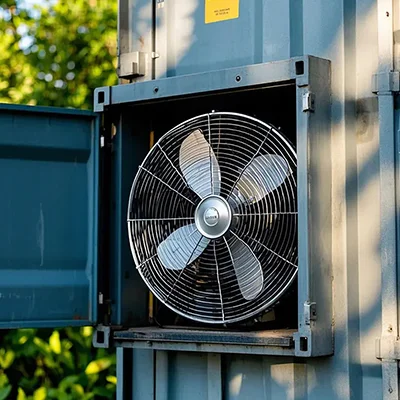

    • Ventilation Fans Ventilation Fans
      Ventilation fan installation ensures effective heat dissipation.

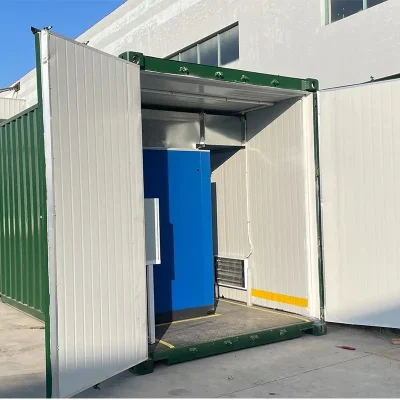

    • Door opening configuration (Side door opening) Door opening configuration (Side door opening)
      Flexible door configurations (front and side) allow for convenient operation and maintenance access.

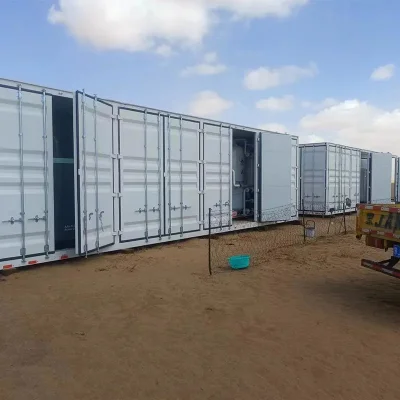

    • Door opening configuration (Front door opening) Door opening configuration (Front door opening)
      Flexible door configurations (front and side) allow for convenient operation and maintenance access.

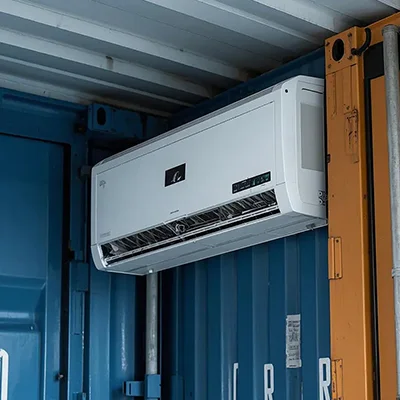

    • Air-conditioning unit Air-conditioning unit
      Air-conditioning installation maintains stable operating temperature.

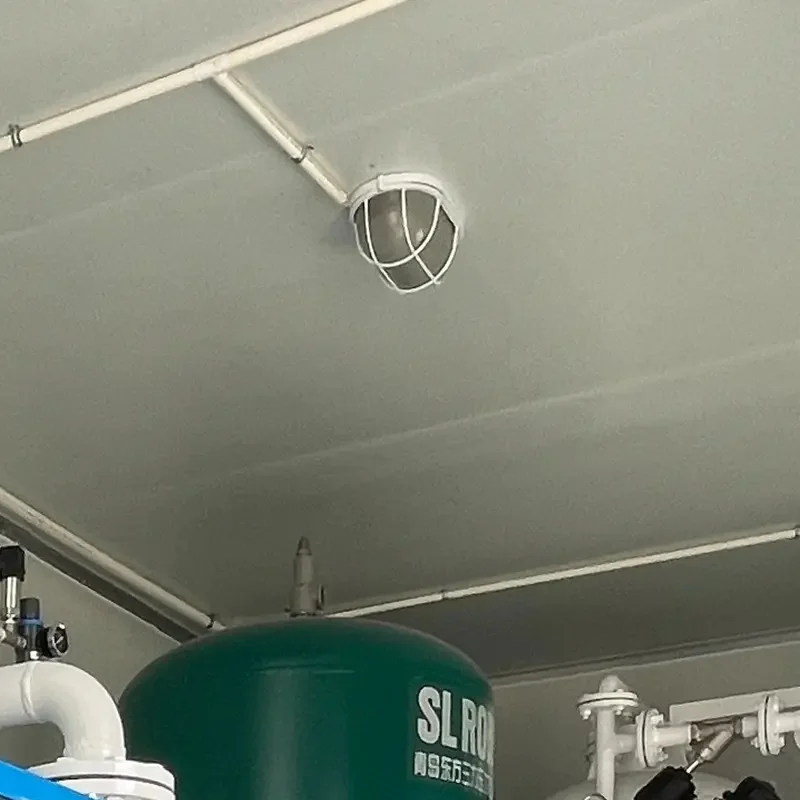

    • Lighting system Lighting system
      Integrated lighting supports safe operation and maintenance.
